Steel wall-mounting Enclosures

Steel wall-mounting enclosures

The Spacial S3D steel enclosure universal offer.

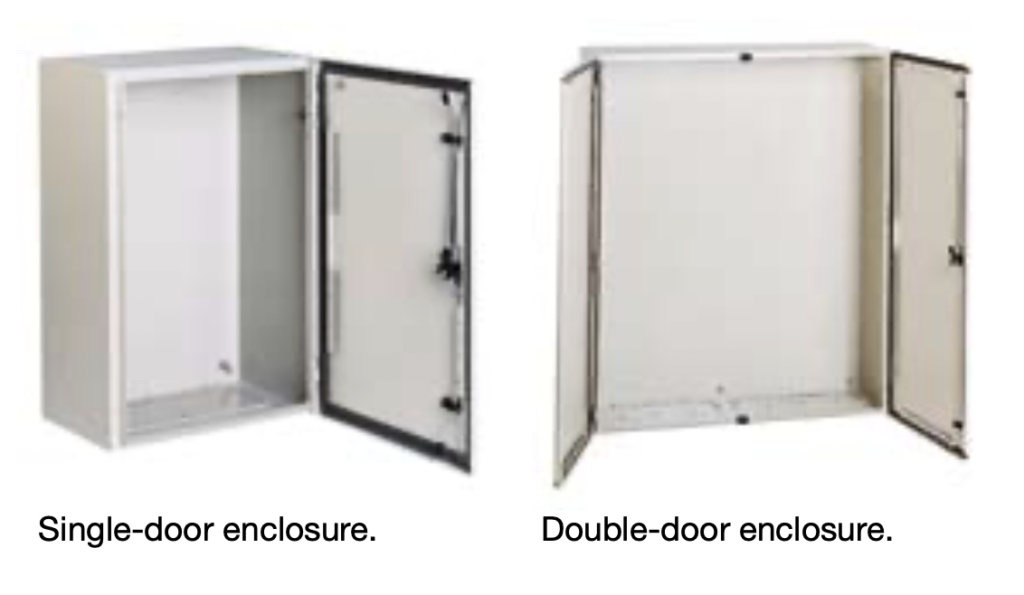

Three steel enclosure definitions are available:

Enclosure with plain door.

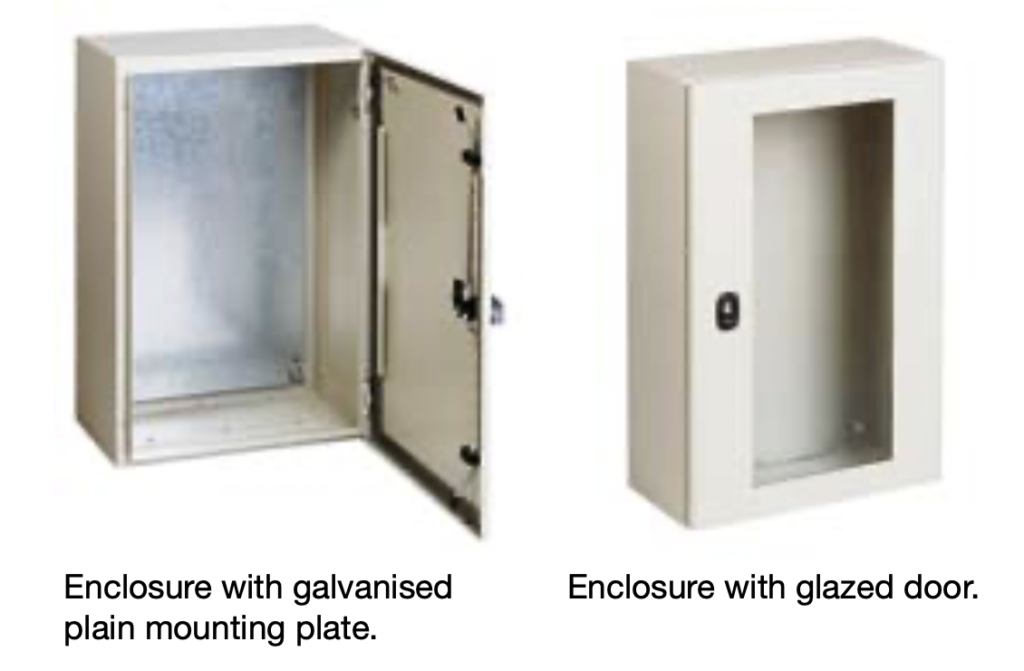

Enclosure with plain door delivered with a galvanised plain mounting plate, not installed.
Enclosure with glazed door, 4-mm-thick Securit® glass.
Structured finish, epoxy-polyester powder, RAL 7035 grey colour.
Selection guide, page 2/4

Technical description:

Enclosure body:

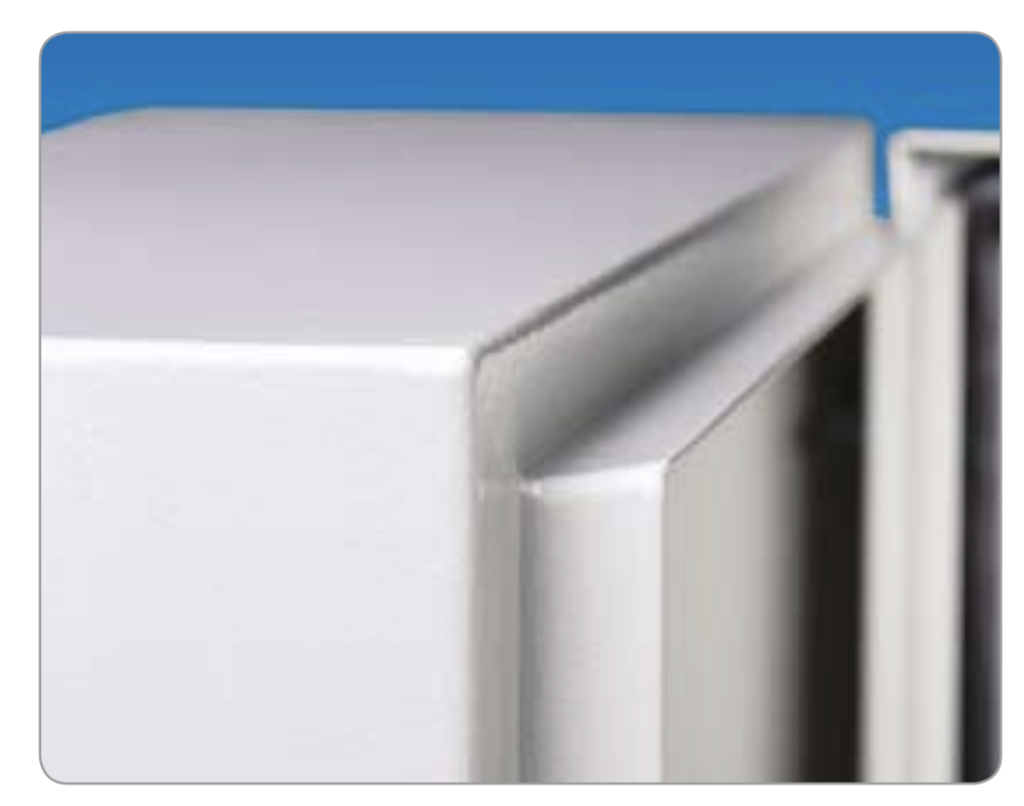

Single-piece body (cross-shaped structure). Gutter-shaped front profile with double fold. Flat rear.
4 (or 6**) M8 x 25 shouldered backstuds for installing mounting plates and step slides, leaving a space of 10 mm behind them.

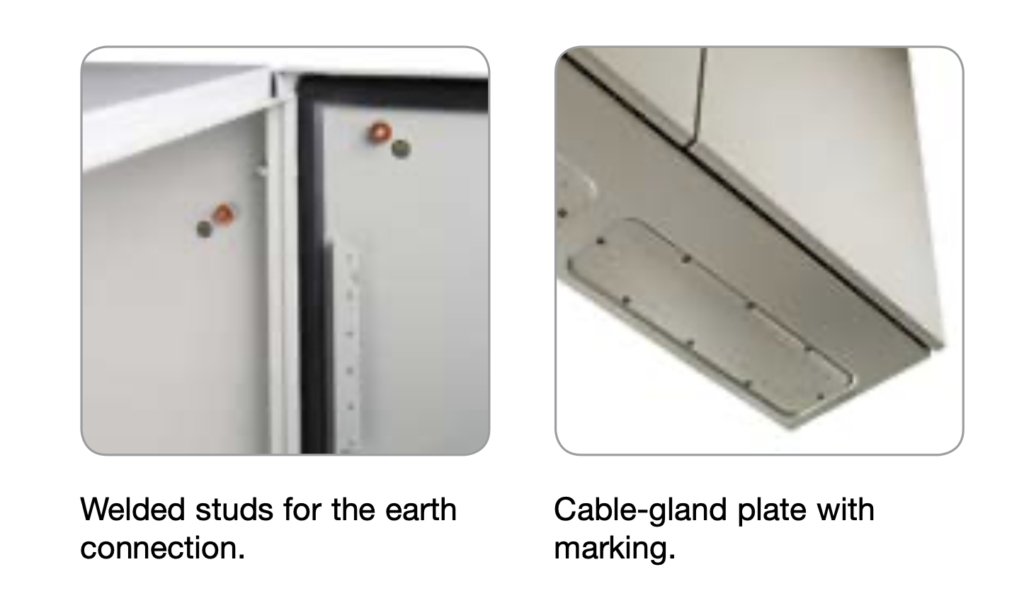

M6 x 16 earthing screws for equipotential connection between the door and the body of the enclosure.
Cable-gland plate with marking for easy drilling and to guarantee the maximum access surface; delivered with the enclosure. This plate is flush with the body of the enclosure.

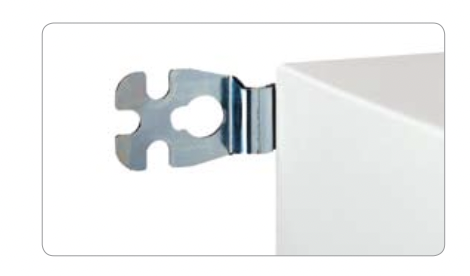

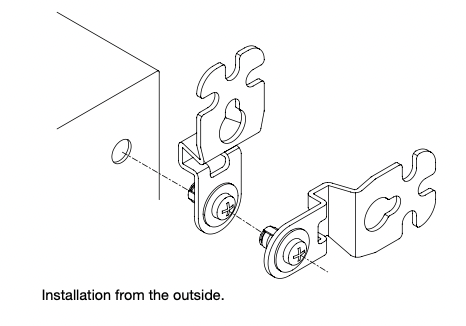

Direct wall-mounting (4 x 10 holes for the sealing plugs guaranteeing the IP) or with the help of fixing lugs installed from the outside.

Enclosure door:

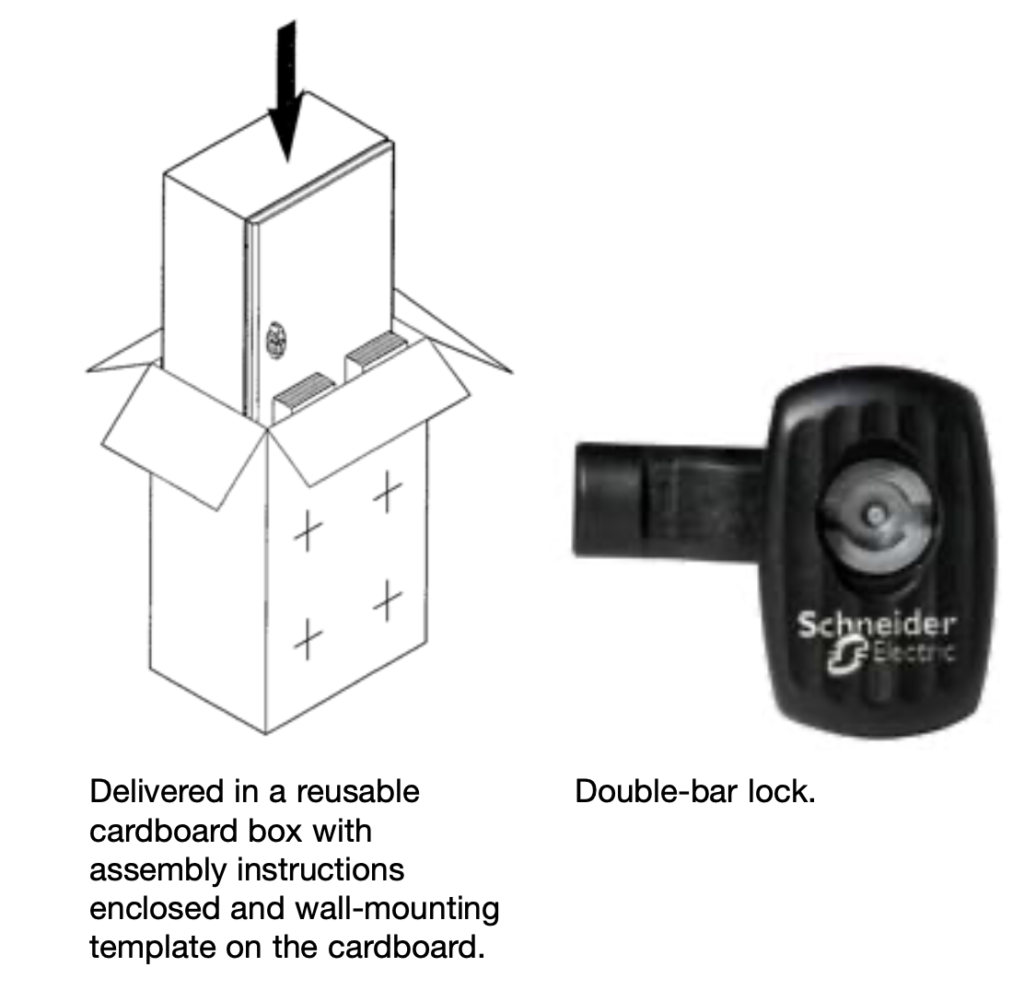

Wall-mounting enclosure supplied with 3-mm double-bar lock as standard.
Polyurethane door gasket.
M6 x 16 earthing screws for equipotential connection between the door and the body of the enclosure.

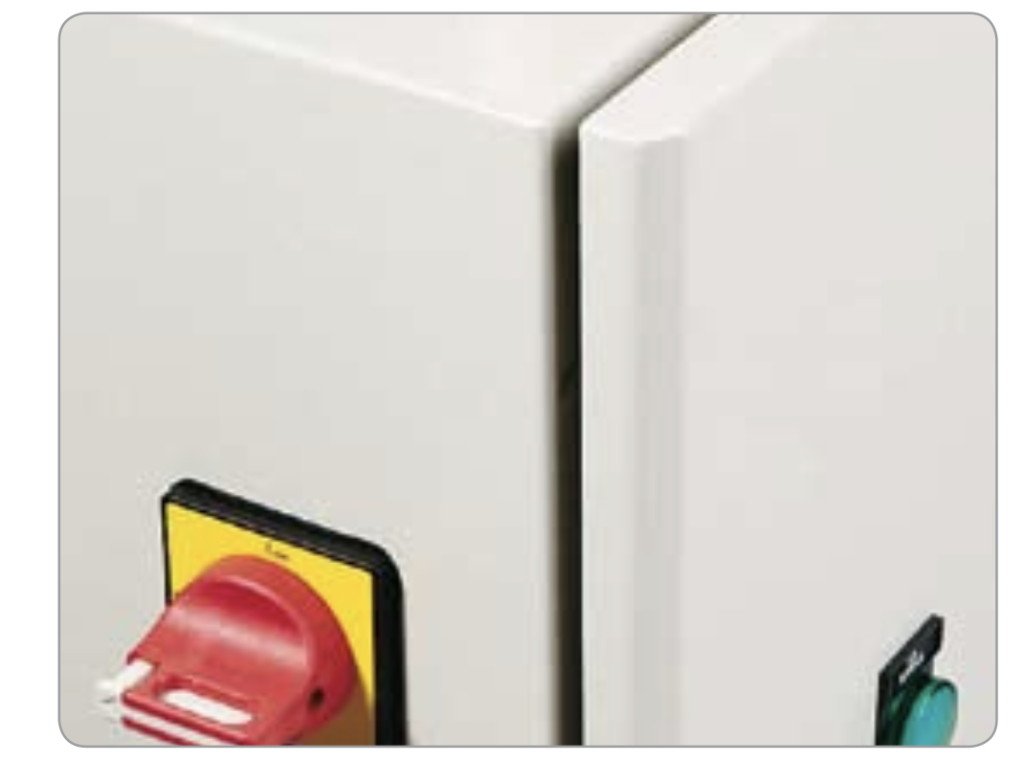

Easily removable and reversible, with 20-mm return with double thickness granting excellent rigidity, opening to 120°, equipped with 2 or 3 invisible hinges*.
Door opening to 180° with optional hinges.
For heights from 600 mm, three locking points with linkage, with a single control point. Simple reversal of linkage. Maximum load: 50 kg/m2.
A handle is delivered which provides 2 functions:
Operating key.
Tool for loosening the stud protection caps. This handle can be solidly attached to the locking system by means of a captive element.
Cable-gland plate with marking.
2 vertical rails from the height of 400 mm,
2 vertical rails and 2 horizontal rails from the width of 800 mm.
From the height of 800 mm.
** Widths of 1000 and 1200 mm.
Standards
Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV, GL,
ATEX (modified enclosure).
The Spacial S3D wall-mounting enclosures are compliant with the RoHS directive.

Technical chracteristics

Protection degree:

IP 66 for the single-door enclosures and IP 55 for the double-door enclosures,

according to IEC 60529.

Nema Type 4, 4X for the single-door enclosures and Nema Type 12, 12K, 13 for the double-door enclosures according to NEMA 250 standard.

Resistance to external mechanical impacts:

- IK 10 for the plain-door enclosures, according to IEC 62262.
- IK 08 for the glazed-door enclosures.

Mechanical characteristics

Fixing of mounting accessories

4 (or 6**) M8 x 25 shouldered backstuds for installing mounting plates and step slides, leaving a space of 10 mm behind them.

** 6 studs for widths 1000 and 1200.

Personnel protection

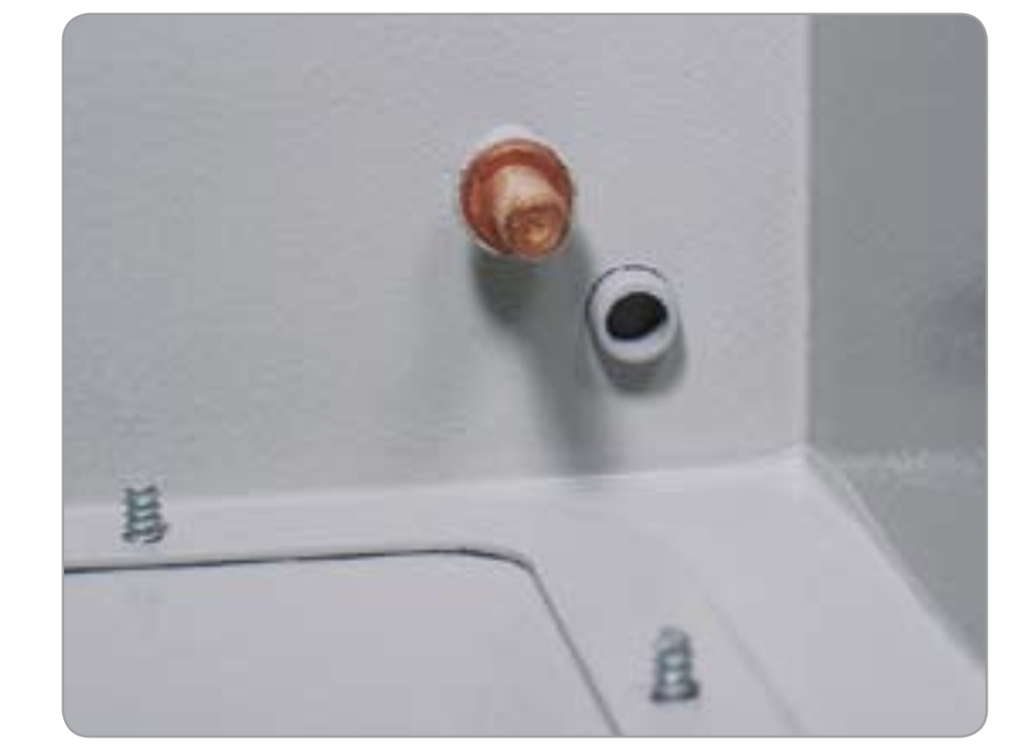

Earth connection: Spacial S3D steel enclosures are equipped with M6 x 16 earth studs welded in the body and the door for equipotential connection. Earth braid to be ordered separately

Closing the enclosure: the enclosures are equipped from the height of 600 mm with three locking points with linkage, with a single control point, preventing the enclosures from being left ajar. Locks and inserts, page 2/14

Coating properties

Colour: RAL 7035 grey; finish: structured.

Coating thickness: 60 μm.

Fire class: M0.

Resistance to corrosion: compliance with standard IEC 62208 for outdoor installation: 288 h of humid heat and 336 h of salt mist.

Note: the Spacial S3D is specially designed for indoor installations. For outdoor installations, it is advisable to install a canopy or consult us.

Nuclear decontamination: RAL 7035 and AFNOR A550 tests available on demand.

Wall-mounting Steel Enclosures Selection Guide

		Specifications
							Spacial S3D
	Dimensions (1)		No of doors	IP	Weight (kg)*	Plain door With mounting plate Without mounting plate		Glazed door Without mounting plate	Plain mounting	Micro-perforated mounting plate
H	W	D
300	200	150	1	66	3.02	NSYS3D3215P	NSYS3D3215		NSYMM32	NSYMF32
300	250	150	1	66	3.48	NSYS3D32515P	NSYS3D32515	NSYS3D32515T	NSYMM3025
300	300	150	1	66	3.90	NSYS3D3315P	NSYS3D3315	NSYS3D3315T	NSYMM33	NSYMF33
300	300	200	1	66	4.50	NSYS3D3320P	NSYS3D3320	NSYS3D3320T	NSYMM33	NSYMF33
300	400	150	1	66	4.82	NSYS3D3415P	NSYS3D3415	NSYS3D3415T	NSYMM43	NSYMF43
300	400	200	1	66	5.60	NSYS3D3420P	NSYS3D3420	NSYS3D3420T	NSYMM43	NSYMF43
400	300	150	1	66	4.90	NSYS3D4315P	NSYS3D4315	NSYS3D4315T	NSYMM43	NSYMF43
400	300	200	1	66	5.00	NSYS3D4320P	NSYS3D4320	NSYS3D4320T	NSYMM43	NSYMF43
400	400	200	1	66	6.50	NSYS3D4420P	NSYS3D4420	NSYS3D4420T	NSYMM44	NSYMF44
400	600	200	1	66	10.50	NSYS3D4620P	NSYS3D4620	NSYS3D4620T	NSYMM64	NSYMF64
400	600	250	1	66	12.00	NSYS3D4625P	NSYS3D4625	NSYS3D4625T	NSYMM64	NSYMF64
500	300	200	1	66	7.50	NSYS3D5320P	NSYS3D5320	NSYS3D5320T	NSYMM53	NSYMF53
500	400	200	1	66	9.30	NSYS3D5420P	NSYS3D5420	NSYS3D5420T	NSYMM54	NSYMF54
500	400	250	1	66	10.20	NSYS3D5425P	NSYS3D5425	NSYS3D5425T	NSYMM54	NSYMF54
500	500	200	1	66	11.18	NSYS3D5520P	NSYS3D5520	NSYS3D5520T	NSYMM55	NSYMF55
500	500	250	1	66	12.06	NSYS3D5525P	NSYS3D5525	NSYS3D5525T	NSYMM55	NSYMF55
600	400	200	1	66	11.00	NSYS3D6420P	NSYS3D6420	NSYS3D6420T	NSYMM64	NSYMF64
600	400	250	1	66	12.00	NSYS3D6425P	NSYS3D6425	NSYS3D6425T	NSYMM64	NSYMF64
600	500	250	1	66	16.20	NSYS3D6525P	NSYS3D6525	NSYS3D6525T	NSYMM65	NSYMF65
600	600	200	1	66	14.00	NSYS3D6620P	NSYS3D6620	NSYS3D6620T	NSYMM66	NSYMF66
600	600	250	1	66	15.00	NSYS3D6625P	NSYS3D6625	NSYS3D6625T	NSYMM66	NSYMF66
600	600	300	1	66	17.00	NSYS3D6630P	NSYS3D6630	NSYS3D6630T	NSYMM66	NSYMF66
600	600	400	1	66	19.00	NSYS3D6640P	NSYS3D6640	NSYS3D6640T	NSYMM66	NSYMF66
600	800	300	1	66	25.50	NSYS3D6830P	NSYS3D6830	NSYS3D6830T	NSYMM86	NSYMF86
700	500	250	1	66	15.00	NSYS3D7525P	NSYS3D7525	NSYS3D7525T	NSYMM75	NSYMF75
800	600	200	1	66	21.00	NSYS3D8620P	NSYS3D8620	NSYS3D8620T	NSYMM86	NSYMF86
800	600	250	1	66	23.00	NSYS3D8625P	NSYS3D8625	NSYS3D8625T	NSYMM86	NSYMF86
800	600	300	1	66	25.00	NSYS3D8630P	NSYS3D8630	NSYS3D8630T	NSYMM86	NSYMF86
800	600	400	1	66	29.00	NSYS3D8640P	NSYS3D8640	NSYS3D8640T	NSYMM86	NSYMF86
800	800	250	1	66	30.00	NSYS3D8825P	NSYS3D8825	NSYS3D8825T	NSYMM88	NSYMF88
800	800	300	1	66	32.00	NSYS3D8830P	NSYS3D8830	NSYS3D8830T	NSYMM88	NSYMF88
800	1000	300	1	66	38.00	NSYS3D81030P	NSYS3D81030		NSYMM108	NSYMF108
800	1000	300	2	55	43.50	NSYS3D81030DP	NSYS3D81030D		NSYMM108	NSYMF108
800	1200	300	2	55	46.00	NSYS3D81230DP	NSYS3D81230D		NSYMM128	NSYMF128
1000	600	250	1	66	28.00	NSYS3D10625P	NSYS3D10625	NSYS3D10625T	NSYMM106	NSYMF106
1000	600	300	1	66	30.60	NSYS3D10630P	NSYS3D10630	NSYS3D10630T	NSYMM106	NSYMF106
1000	600	400	1	66	33.00	NSYS3D10640P	NSYS3D10640	NSYS3D10640T	NSYMM106	NSYMF106
1000	800	250	1	66	35.00	NSYS3D10825P	NSYS3D10825	NSYS3D10825T	NSYMM108	NSYMF108
1000	800	300	1	66	38.00	NSYS3D10830P	NSYS3D10830	NSYS3D10830T	NSYMM108	NSYMF108
1000	800	400	1	66	42.00	NSYS3D10840P	NSYS3D10840	NSYS3D10840T	NSYMM108	NSYMF108
1000	1000	300	1	66	46.00	NSYS3D101030P	NSYS3D101030	NSYS3D101030T	NSYMM1010	NSYMF1010
1000	1000	300	2	55	46.00	NSYS3D101030DP	NSYS3D101030D	NSYS3D101030DT	NSYMM1010	NSYMF1010
1000	1200	300	2	55	53.00	NSYS3D101230DP	NSYS3D101230D		NSYMM1210	NSYMF1210
1000	1200	400	2	55	60.00	NSYS3D101240DP	NSYS3D101240D		NSYMM1210	NSYMF1210
1200	600	300	1	66	37.00	NSYS3D12630P	NSYS3D12630	NSYS3D12630T	NSYMM126	NSYMF126
1200	600	400	1	66	42.00	NSYS3D12640P	NSYS3D12640	NSYS3D12640T	NSYMM126	NSYMF126
1200	800	300	1	66	45.00	NSYS3D12830P	NSYS3D12830	NSYS3D12830T	NSYMM128	NSYMF128
1200	800	400	1	66	49.00	NSYS3D12840P	NSYS3D12840	NSYS3D12840T	NSYMM128	NSYMF128
1200	1000	300	1	66	53.00	NSYS3D121030P	NSYS3D121030	NSYS3D121030T	NSYMM1210	NSYMF1210
1200	1000	300	2	55	54.00	NSYS3D121030DP	NSYS3D121030D	NSYS3D121030DT	NSYMM1210	NSYMF1210
1200	1000	400	2	55	61.00	NSYS3D121040DP	NSYS3D121040D		NSYMM1210	NSYMF1210
1200	1200	300	2	55	64.00	NSYS3D121230DP	NSYS3D121230D		NSYMM1212	2 x NSYMF126+
1200	1200	400	2	55	90.00	NSYS3D121240DP	NSYS3D121240D		NSYMM1212	2 x NSYMF126+
1400	1000	300	2	55	80.00	NSYS3D141030DP	NSYS3D141030D		NSYMM1410

						Electricity distribution
Mounting plate						Modular mounting plate
Telequick	Bakelite			Aluminium
		DIN rail			Modular mounting			Plain mounting
mounting	mounting		Type	vertical rails		No of modules	Plain front panel
		chassis			plate			plate
plate	plate			(3)
NSYMR32	NSYMB32			NSYMDVR3
NSYMR3025	NSYMB3025			NSYMDVR3
NSYMR33	NSYMB33	NSYMD33	B	NSYMDVR3
NSYMR33	NSYMB33	NSYMD33	B	NSYMDVR3
NSYMR34	NSYMB43			NSYMDVR3
NSYMR34	NSYMB43			NSYMDVR3
NSYMR43	NSYMB43	NSYMD43	B	NSYMDVR4	NSYDLM24	24	NSYCTL300DLM	NSYPMP300DLM
NSYMR43	NSYMB43	NSYMD43	B	NSYMDVR4	NSYDLM24	24	NSYCTL300DLM	NSYPMP300DLM
NSYMR44				NSYMDVR4
NSYMR46	NSYMB64			NSYMDVR4
NSYMR46	NSYMB64			NSYMDVR4
NSYMR53				NSYMDVR5
NSYMR54	NSYMB54	NSYMD54	B	NSYMDVR5	NSYDLM48	48	NSYCTL400DLM	NSYPMP400DLM
NSYMR54	NSYMB54	NSYMD54	B	NSYMDVR5	NSYDLM48	48	NSYCTL400DLM	NSYPMP400DLM
NSYMR55				NSYMDVR5
NSYMR55				NSYMDVR5
NSYMR64	NSYMB64	NSYMD64	B	NSYMDVR6	NSYDLM48P	48	NSYCTL400DLM	NSYPMP400DLM
NSYMR64	NSYMB64	NSYMD64	B	NSYMDVR6	NSYDLM48P	48	NSYCTL400DLM	NSYPMP400DLM
NSYMR65	NSYMB65			NSYMDVR6
NSYMR66		NSYMD66	A	NSYMDVR6	NSYDLM84	84	NSYCTL600DLM	NSYPMP600DLM
NSYMR66		NSYMD66	A	NSYMDVR6	NSYDLM84	84	NSYCTL600DLM	NSYPMP600DLM
NSYMR66		NSYMD66	A	NSYMDVR6	NSYDLM84	84	NSYCTL600DLM	NSYPMP600DLM
NSYMR66		NSYMD66	A	NSYMDVR6	NSYDLM84	84	NSYCTL600DLM	NSYPMP600DLM
NSYMR68	NSYMB86	NSYMD86**	A	NSYMDVR6
NSYMR75	NSYMB75	NSYMD75	B	NSYMDVR7	NSYDLM66	66	NSYCTL500DLM	NSYPMP500DLM
NSYMR86	NSYMB86	NSYMD86	A	NSYMDVR8	NSYDLM84P	84*	NSYCTL600DLM	NSYPMP600DLM
NSYMR86	NSYMB86	NSYMD86	A	NSYMDVR8	NSYDLM112	112*	NSYCTL600DLM	NSYPMP600DLM
NSYMR86	NSYMB86	NSYMD86	A	NSYMDVR8	NSYDLM112	112*	NSYCTL600DLM	NSYPMP600DLM
NSYMR86	NSYMB86	NSYMD86	A	NSYMDVR8	NSYDLM112	112*	NSYCTL600DLM	NSYPMP600DLM
NSYMR88				NSYMDVR8
NSYMR88				NSYMDVR8
NSYMR810	NSYMB108			NSYMDVR8
NSYMR810	NSYMB108			NSYMDVR8
2 x NSYMR86+	2 x NSYMB86+	2 x NSYMB86+	A	NSYMDVR8
NSYMR106	NSYMB106			NSYMDVR10	NSYDLM168	168**	NSYCTL600DLM	NSYPMP600DLM
NSYMR106	NSYMB106			NSYMDVR10	NSYDLM168	168**	NSYCTL600DLM	NSYPMP600DLM
NSYMR106	NSYMB106			NSYMDVR10	NSYDLM168	168**	NSYCTL600DLM	NSYPMP600DLM
NSYMR108	NSYMB108	NSYMD108	A	NSYMDVR10	NSYDLM240	240	NSYCTL800DLM	NSYPMP800DLM
NSYMR108	NSYMB108	NSYMD108	A	NSYMDVR10	NSYDLM240	240	NSYCTL800DLM	NSYPMP800DLM
NSYMR108	NSYMB108	NSYMD108	A	NSYMDVR10	NSYDLM240	240	NSYCTL800DLM	NSYPMP800DLM
NSYMR1010				NSYMDVR10
NSYMR1010				NSYMDVR10
NSYMR1012	NSYMB1210			NSYMDVR10
NSYMR1012	NSYMB1210			NSYMDVR10
				NSYMDVR12
				NSYMDVR12
NSYMR128		NSYMD128	A	NSYMDVR12
NSYMR128		NSYMD128	A	NSYMDVR12
NSYMR1210	NSYMB1210			NSYMDVR12
NSYMR1210	NSYMB1210			NSYMDVR12
NSYMR1210	NSYMB1210			NSYMDVR12
2 x NSYMR126+				NSYMDVR12
2 x NSYMR126+				NSYMDVR12

				Electronics and networks					Cable-entry accessories
				19'' racks					Cable-gland plates
	Dimensions (4)										Steel with
				Number		Number		Standard	Steel with
			Fixed		Swing		Entry type			Aluminium	cut-out for
				of U		of U		steel	knock-outs
											membrane
H	W	D
300	200	150					A	NSYTLA	NSYTLAK	NSYTLAU
300	250	150					A	NSYTLA	NSYTLAK	NSYTLAU
300	300	150					B	NSYTLB	NSYTLBK	NSYTLBU
300	300	200					C	NSYTLC	NSYTLCK	NSYTLCU	NSYTLCFL
300	400	150					B	NSYTLB	NSYTLBK	NSYTLBU
300	400	200					D	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
400	300	150					B	NSYTLB	NSYTLBK	NSYTLBU
400	300	200					C	NSYTLC	NSYTLCK	NSYTLCU	NSYTLCFL
400	400	200					D	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
400	600	200	NSYVDM8UF	8	NSYVDM7UP	7	F	NSYTLF	NSYTLFK	NSYTLFU	NSYTLFFL
400	600	250	NSYVDM8UF	8	NSYVDM7UP	7	F	NSYTLF	NSYTLFK	NSYTLFU	NSYTLFFL
500	300	200					C	NSYTLC	NSYTLCK	NSYTLCU	NSYTLCFL
500	400	200					D	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
500	400	250					D	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
500	500	200					E	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
500	500	250					E	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
600	400	200					D	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
600	400	250					D	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
600	500	250					E	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
600	600	200	NSYVDM12UF	12	NSYVDM11UP	11	F	NSYTLF	NSYTLFK	NSYTLFU	NSYTLFFL
600	600	250	NSYVDM12UF	12	NSYVDM11UP	11	F	NSYTLF	NSYTLFK	NSYTLFU	NSYTLFFL
600	600	300	NSYVDM12UF	12	NSYVDM11UP	11		NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
600	600	400	NSYVDM12UF	12	NSYVDM11UP	11		NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
600	800	300					D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
700	500	250					E	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
800	600	200	NSYVDM17UF	17	NSYVDM16UP	16	F	NSYTLF	NSYTLFK	NSYTLFU	NSYTLFFL
800	600	250	NSYVDM17UF	17	NSYVDM16UP	16	F	NSYTLF	NSYTLFK	NSYTLFU	NSYTLFFL
800	600	300	NSYVDM17UF	17	NSYVDM16UP	16		NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
800	600	400	NSYVDM17UF	17	NSYVDM16UP	16		NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
800	800	250					D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
800	800	300					D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
800	1000	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
800	1000	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
800	1200	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1000	600	250	NSYVDM21UF	21	NSYVDM20UP	20	F	NSYTLF	NSYTLFK	NSYTLFU	NSYTLFFL
1000	600	300	NSYVDM21UF	21	NSYVDM20UP	20		NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
1000	600	400	NSYVDM21UF	21	NSYVDM20UP	20		NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
1000	800	250			NSYVDM20U8P	20	D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
1000	800	300			NSYVDM20U8P	20	D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
1000	800	400			NSYVDM20U8P	20	D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
1000	1000	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1000	1000	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1000	1200	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1000	1200	400					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1200	600	300						NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
1200	600	400						NSYTLG	NSYTLGK	NSYTLGU	NSYTLG2FL
1200	800	300			NSYVDM25U8P	25	D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
1200	800	400			NSYVDM25U8P	25	D*	NSYTLD	NSYTLDK	NSYTLDU	NSYTLDFL
1200	1000	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1200	1000	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1200	1000	400					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1200	1200	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1200	1200	400					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL
1400	1000	300					E*	NSYTLE	NSYTLEK	NSYTLEU	NSYTLEFL

				Composition accessories
Internal door (5)	Step slides	Canopy	Fixing on post	Lateral plinth** 100 mm 200 mm		Plain front plinth (6)** 100 mm 200 mm		Support pillar adaptation plate	Support pillar	Door cross-rails
		NSYTJ2015
		NSYTJ2515
		NSYTJ3015	NSYSFPSC30					NSYAEFP315S3D	NSYCOCN80
	NSYSDCR200	NSYTJ3020	NSYSFPSC30					NSYAEFP32S3D	NSYCOCN80
		NSYTJ4015	NSYSFPSC40					NSYAEFP315S3D	NSYCOCN80
	NSYSDCR200	NSYTJ4020	NSYSFPSC40					NSYAEFP42S3D	NSYCOCN80
NSYPIN43		NSYTJ3015	NSYSFPSC30					NSYAEFP315S3D	NSYCOCN80
NSYPIN43	NSYSDCR200	NSYTJ3020	NSYSFPSC30					NSYAEFP32S3D	NSYCOCN80
	NSYSDCR200	NSYTJ4020	NSYSFPSC40					NSYAEFP42S3D	NSYCOCN80	NSYTFPCRN4
	NSYSDCR200	NSYTJ6020	NSYSFPSC60							NSYTFPCRN6
	NSYSDCR250	NSYTJ6025	NSYSFPSC60							NSYTFPCRN6
	NSYSDCR200	NSYTJ3020	NSYSFPSC30					NSYAEFP32S3D	NSYCOCN80
NSYPIN54	NSYSDCR200	NSYTJ4020	NSYSFPSC40					NSYAEFP42S3D	NSYCOCN80	NSYTFPCRN4
NSYPIN54	NSYSDCR250	NSYTJ4025	NSYSFPSC40					NSYAEFP42S3D	NSYCOCN80	NSYTFPCRN4
	NSYSDCR200	NSYTJ5020	NSYSFPSC50							NSYTFPCRN5
	NSYSDCR250	NSYTJ5025	NSYSFPSC50							NSYTFPCRN5
NSYPIN64	NSYSDCR200	NSYTJ4020	NSYSFPSC40					NSYAEFP42S3D	NSYCOCN80	NSYTFPCRN4
NSYPIN64	NSYSDCR250	NSYTJ4025	NSYSFPSC40					NSYAEFP42S3D	NSYCOCN80	NSYTFPCRN4
	NSYSDCR250	NSYTJ5025	NSYSFPSC50
	NSYSDCR200	NSYTJ6020	NSYSFPSC60							NSYTFPCRN6
	NSYSDCR250	NSYTJ6025	NSYSFPSC60							NSYTFP CRN6
	NSYSDCR300	NSYTJ6030	NSYSFPSC60	NSYSPS3100SD	NSYSPS3200SD	NSYSPF6100	NSYSPF6200			NSYTFPCRN6
	NSYSDCR400	NSYTJ6040	NSYSFPSC60	NSYSPS4100SD	NSYSPS4200SD	NSYSPF6100	NSYSPF6200			NSYTFPCRN6
	NSYSDCR300	NSYTJ8030	NSYSFPSC80	NSYSPS3100SD	NSYSPS3200SD	NSYSPF8100	NSYSPF8200			NSYTFPCRN8
NSYPIN75	NSYSDCR250	NSYTJ5025	NSYSFPSC50							NSYTFPCRN5
NSYPIN86	NSYSDCR200	NSYTJ6020	NSYSFPSC60							NSYTFPCRN6
NSYPIN86	NSYSDCR250	NSYTJ6025	NSYSFPSC60							NSYTFPCRN6
NSYPIN86	NSYSDCR300	NSYTJ6030	NSYSFPSC60	NSYSPS3100SD	NSYSPS3200SD	NSYSPF6100	NSYSPF6200			NSYTFPCRN6
NSYPIN86	NSYSDCR400	NSYTJ6040	NSYSFPSC60	NSYSPS4100SD	NSYSPS4200SD	NSYSPF6100	NSYSPF6200			NSYTFPCRN6
	NSYSDCR250	NSYTJ8025	NSYSFPSC80							NSYTFPCRN8
	NSYSDCR300	NSYTJ8030	NSYSFPSC80	NSYSPS3100SD	NSYSPS3200SD	NSYSPF8100	NSYSPF8200			NSYTFPCRN8
	NSYSDCR300	NSYTJ10030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF10100	NSYSPF10200			NSYTFPCRN10
	NSYSDCR300	NSYTJ10030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF10100	NSYSPF10200
	NSYSDCR300*	NSYTJ12030
NSYPIN106	NSYSDCR250	NSYTJ6025								NSYTFPCRN6
NSYPIN106	NSYSDCR300	NSYTJ6030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF6100	NSYSPF6200			NSYTFPCRN6
NSYPIN106	NSYSDCR400	NSYTJ6040		NSYSPS4100SD	NSYSPS4200SD	NSYSPF6100	NSYSPF6200			NSYTFPCRN6
NSYPIN108	NSYSDCR250	NSYTJ8025								NSYTFPCRN8
NSYPIN108	NSYSDCR300	NSYTJ8030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF8100	NSYSPF8200			NSYTFPCRN8
NSYPIN108	NSYSDCR400	NSYTJ8040		NSYSPS4100SD	NSYSPS4200SD	NSYSPF8100	NSYSPF8200			NSYTFPCRN8
	NSYSDCR300	NSYTJ10030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF10100	NSYSPF10200			NSYTFPCRN10
	NSYSDCR300	NSYTJ10030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF10100	NSYSPF10200
	NSYSDCR300*	NSYTJ12030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF12100	NSYSPF12200
	NSYSDCR400*	NSYTJ12040		NSYSPS4100SD	NSYSPS4200SD	NSYSPF12100	NSYSPF12200
NSYPIN126	NSYSDCR300	NSYTJ6030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF6100	NSYSPF6200
NSYPIN126	NSYSDCR400	NSYTJ6040		NSYSPS4100SD	NSYSPS4200SD	NSYSPF6100	NSYSPF6200
NSYPIN128	NSYSDCR300	NSYTJ8030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF8100	NSYSPF8200			NSYTFPCRN8
NSYPIN128	NSYSDCR400	NSYTJ8040		NSYSPS4100SD	NSYSPS4200SD	NSYSPF8100	NSYSPF8200			NSYTFPCRN8
	NSYSDCR300	NSYTJ10030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF10100	NSYSPF10200			NSYTFPCRN10
	NSYSDCR300	NSYTJ10030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF10100	NSYSPF10200
	NSYSDCR400	NSYTJ10040		NSYSPS4100SD	NSYSPS4200SD	NSYSPF10100	NSYSPF10200
	NSYSDCR300*	NSYTJ12030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF12100	NSYSPF12200
	NSYSDCR400*	NSYTJ12040		NSYSPS4100SD	NSYSPS4200SD	NSYSPF12100	NSYSPF12200
	NSYSDCR300	NSYTJ10030		NSYSPS3100SD	NSYSPS3200SD	NSYSPF10100	NSYSPF10200

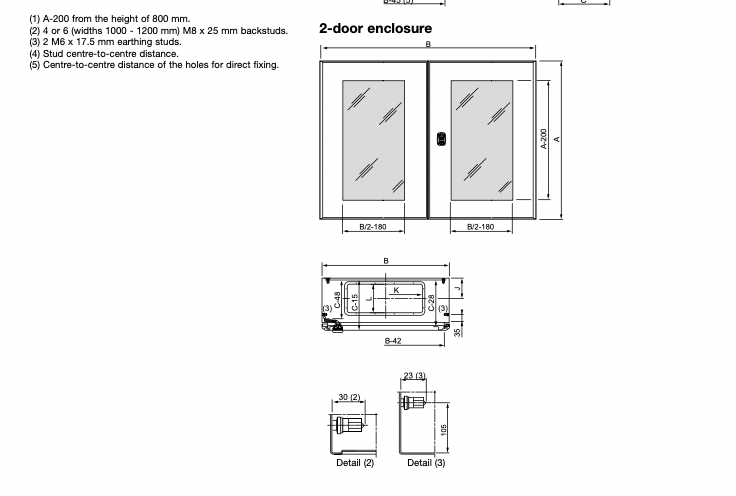

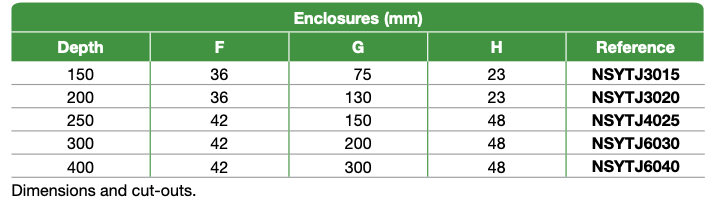

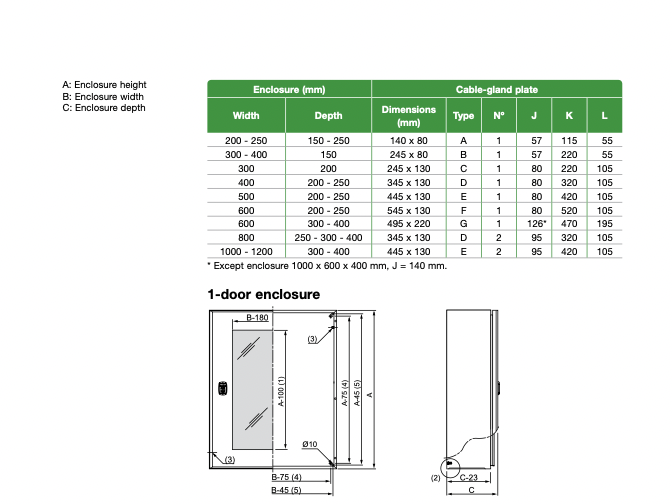

Dimensions

Composition accessories
Fixing accessories

Wall - Fixing lugs

Set of 4 wall-fixing lugs

Mounted directly on the rear of the enclosure, either in horizontal or vertical position.
Two types of position, steel and 304 stainless-steel, for a wall-enclosure separation of 10 mm.
Acceptable load:
Horizontal lug: 180 kg.
Vertical lug: 350 kg.
Supplied with fixing screws and pre-mounted sealing gaskets.

Description

Set of 4 steel fixing lugs
Set of 4 stainless-steel fixing lugs

Reference

NSYAEPFSC
NSYAEFPFXSC

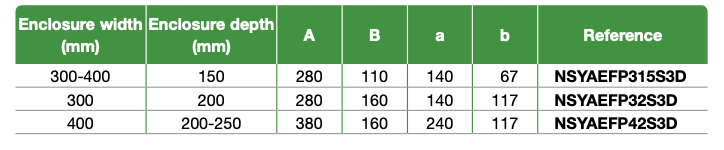

Fixing centre-to-centre distance with lugs (M8 screw)

Kit for heavy loads

Kit made up of 2 steel reinforcement pieces.
Maximum load, 400 kg.
To be mounted before installing the mounting plate in top position with the standard lugs (to be ordered separately).

Description

Kits for heavy loads

Reference

NSYAEFAHLBSC

Wall-fixing lugs with wall-enclosure separation

Batch of 4 wall-fixing lugs.
Separation of 40 mm from the wall at the rear of the enclosure.
Need to drill a hole to prevent rotation.
Steel material.
Maximum load: 100 kg.

Reference

NSYAEFPF40SC

Composition accessories
Coupling accessories

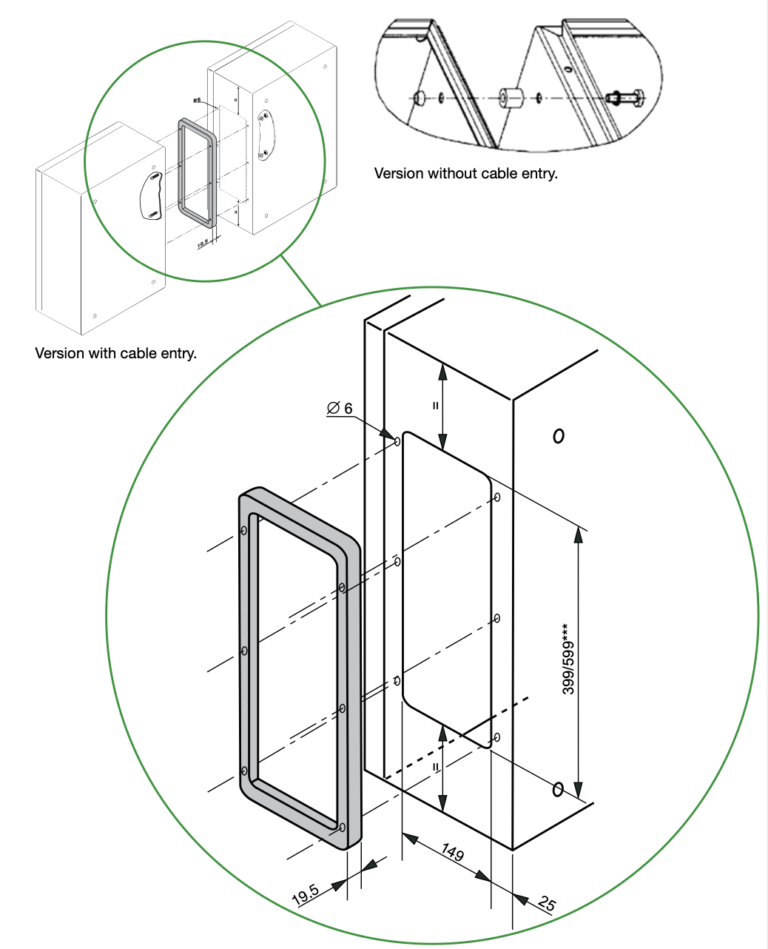

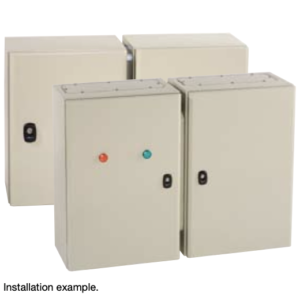

Coupling of Spacial steel enclosures

Available in 2 versions:

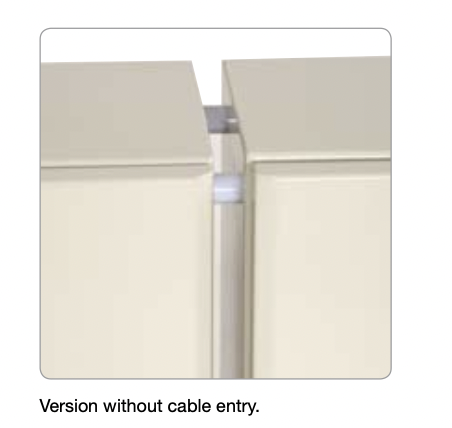

Coupling version without cable entry.

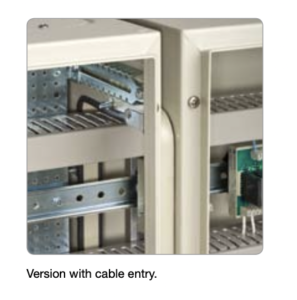

Version with coupling frame allowing the entry of cables.
Separation of 17 mm between 2 coupled enclosures, allowing full opening of the doors.

Kit for fixing 2 joined enclosures

- Kit made up of 4 spacers and their fixings.

Coupling Frame

Allows lateral coupling of 2 enclosures.
Frame made from polyester charged with fibreglass, self-extinguishing.
A built-in sealing gasket guarantees the protection degree of IP 66.
Mounting by screws, included.
Dimensions: 435 x 185 mm and 635 x 185 mm. These frames allow the door to open to 120º

Composition accessories
Hoisting accessories

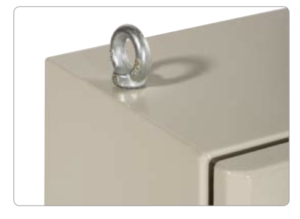

Eyebolts

Set of two M8 eyebolts.

Material: zinc-coated moulded steel.
They are fixed directly to the body of the floor-standing enclosure.
Maximum load to be installed: 210 kg per enclosure when slinging at 60°.
Cannot be installed with the canopy in place.
Reinforcing brackets attached to the rings,
These brackets also act as a drilling template.
Have your cut-outs made by our configured service.
Paint touch-up pen.

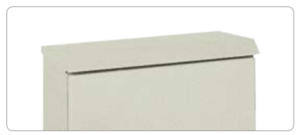

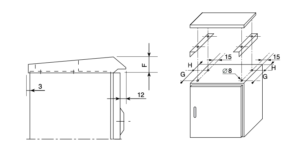

Protection canopy

Direct fixing to the body of the enclosure by 4 M6 screws.
Material: sheet steel made from painted galvanised steel, structured finish, epoxy-polyester powder, RAL 7035 grey colour.
Delivered with the fixings required for installation.
To be used for all outdoor installations.
Have your cut-outs made by our configured service.
Paint touch-up pen.

Composition accessories
Fixing accessories

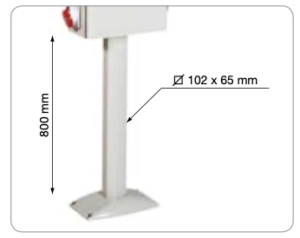

Support pillar

The support pillar is fixed directly to the bottom face of the Spacial steel enclosure by means of an adapter plate. The latter, to be ordered in addition to the pillar, replaces the cable-gland plate.
Overall height of the support foot: 800 mm.
Material: extruded aluminium, structured finish, polyester powder, RAL 7035 grey colour.
Mounting possible on all enclosures with dimensions up to 600 x 400 x 250 mm (except 200 x 200 x 150 and 250 x 200 x 150 enclosures).

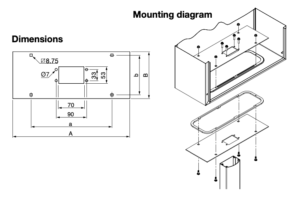

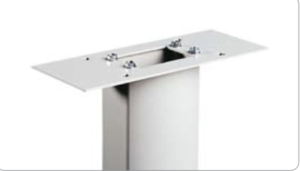

Support pillar adaptation plate

Plate for fixing the support pillar on the e nclosure.
This plate replaces the cable-gland plate delivered with the enclosure.
Material: steel, structured finish, polyester powder, RAL 7035 grey colour.

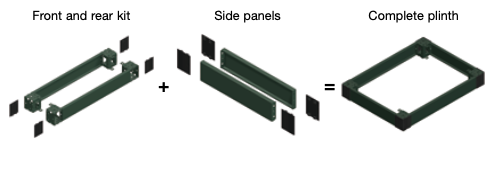

Plinth kit

The complete plinth consists of two elements: on the one hand, the front and rear kit, determined by the width of the enclosure and, on the other hand, the side panels determined by the depth of the enclosure.

Steel enclosures keep your components protected in any environment. We offers an array of electronics boxes and multi-purpose metal and plastic electronic enclosures. Superior materials include high-quality plastic, aluminum, and steel varieties, with indoor and outdoor electronics enclosure options available.

Resources

Why Steel Enclosures
Compact Metal Enclosures
Steel Wall Mounting Enclosures
Contact
